P232 Rail Series


Profile width 75mm wide with double rail frame and 92.5mm width single rail frame with 50mm width sliding wing profile
Number of chambers 3
Profile class B Class (TS EN 12608-1)
Seal Type Bristle seal system
Glass thickness (mm) 4-6, 20, 24mm
The thermal insulation Uf 1,80 W/m²K
Uf 2,10 W/m²K

Light Oak ST 515

Golden Oak ST 500

Anthracite Grey AS 508

Anthracite Grey ST 508

Swamp Oak ST 503

Grey ST 507

Dark Oak ST 501

Cream AS 057

Grey Sand AS 509

Mahogany ST 504

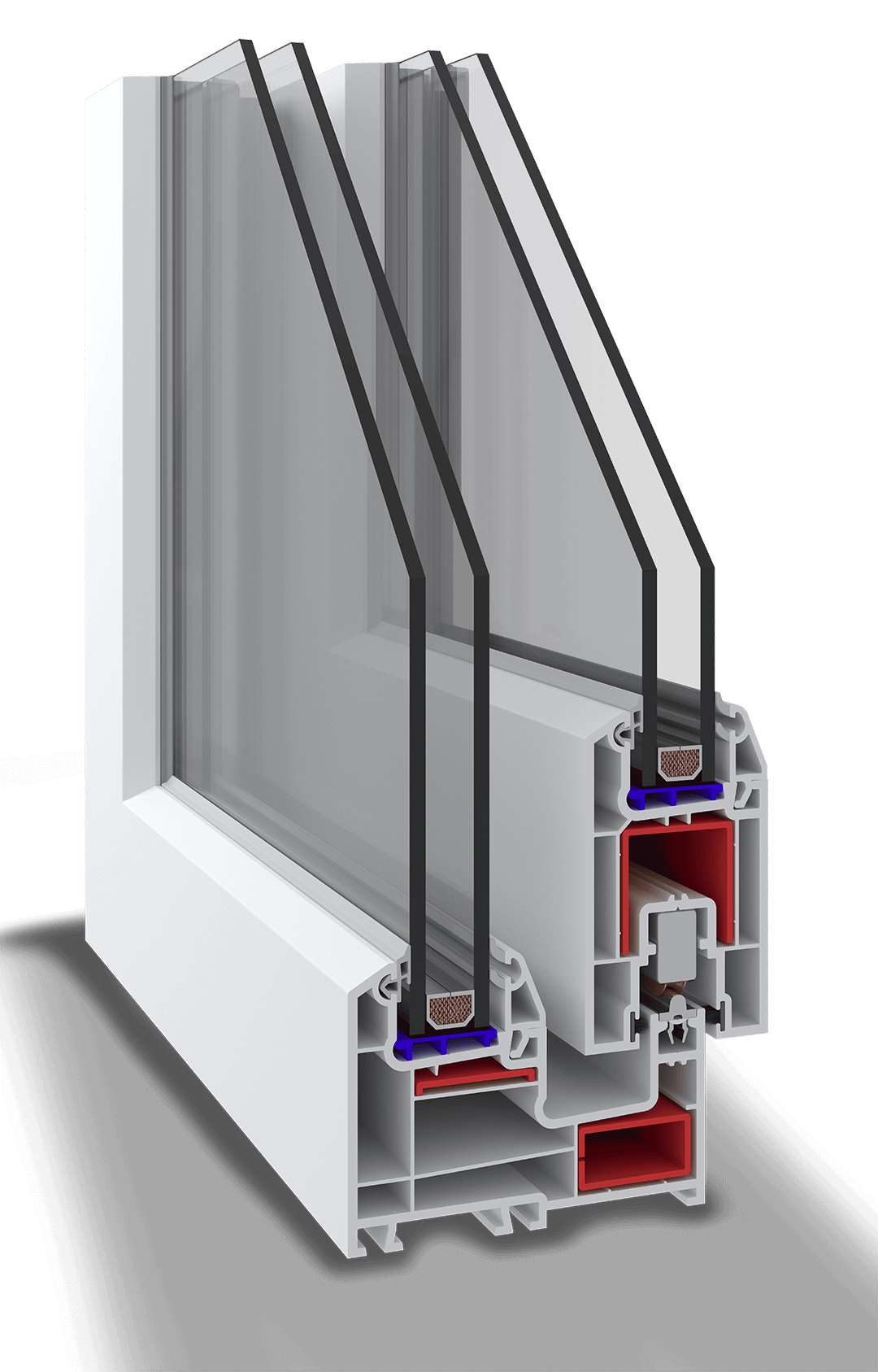

50 mm wide rail wing profile with 75 mm wide double rail frame and 92.5 mm wide single rail alternative frame

It provides excellent heat, sound and water insulation thanks to its three large chambers and astonishing water discharge system.

Sealed wing interlock system

Possibility to apply single glass (4-6 mm) and double glazing (20 - 24 mm) with gray sealed lath in different thicknesses

Roller shutter and without roller shutter options

In addition to the white body color, it has colored and laminated profiles.

P232 Rail series

just for your home

With its thinness and perfect mobility, P232 Rail is designed to complement the cool look of your home. It provides perfect heat, sound and water isolation with its 3 wide-chambered structure and surprising water discharge system with leak-proof guarantee.

The 75 mm wide double rail case and the 92.5 mm wide single rail alternative case and the 50 mm wide wing profile are designed to provide the best performance.

The modular structure, which can be applied to single glass (4-6 mm) and insulating glass (20 -24mm) with gray sealed lath in different thicknesses, adds convenience to your life.

The option of P232 Rail with or without blinds supports you with a service understanding according to the need.

Gold oak, dark oak, light oak, marsh oak, sand gray, gray, mahogany and cream color options are available for you to experience the excitement of the phrase “this is the color of my house”. Plaspen is there to make you happy.

P232 Rail, with its quality approved by national and international measurement institutions, understands your needs and creates the most suitable frame for the seasonal picture outside the glass and makes your life more colorful.
